Pico, the Customizable Powder Dispenser for 48 2 ml Tubes

This powder dispenser for tubes can be customized to fit small beads or powder of all kinds of material and volume. The 48 well powder dispenser is ideal for laboratories handling large number of samples and requiring unmatched accuracy and consistent powder distribution across 48 tubes. It can also be used to measure and dispense plant seeds or any other kind of granular material.

The 48 well powder dispenser fits 2 ml screw-cap tubes. It is compatible only with a standard 96 tube rack (see picture, also available here).

Options for Customization of the Powder Dispenser for 2 ml Tubes:

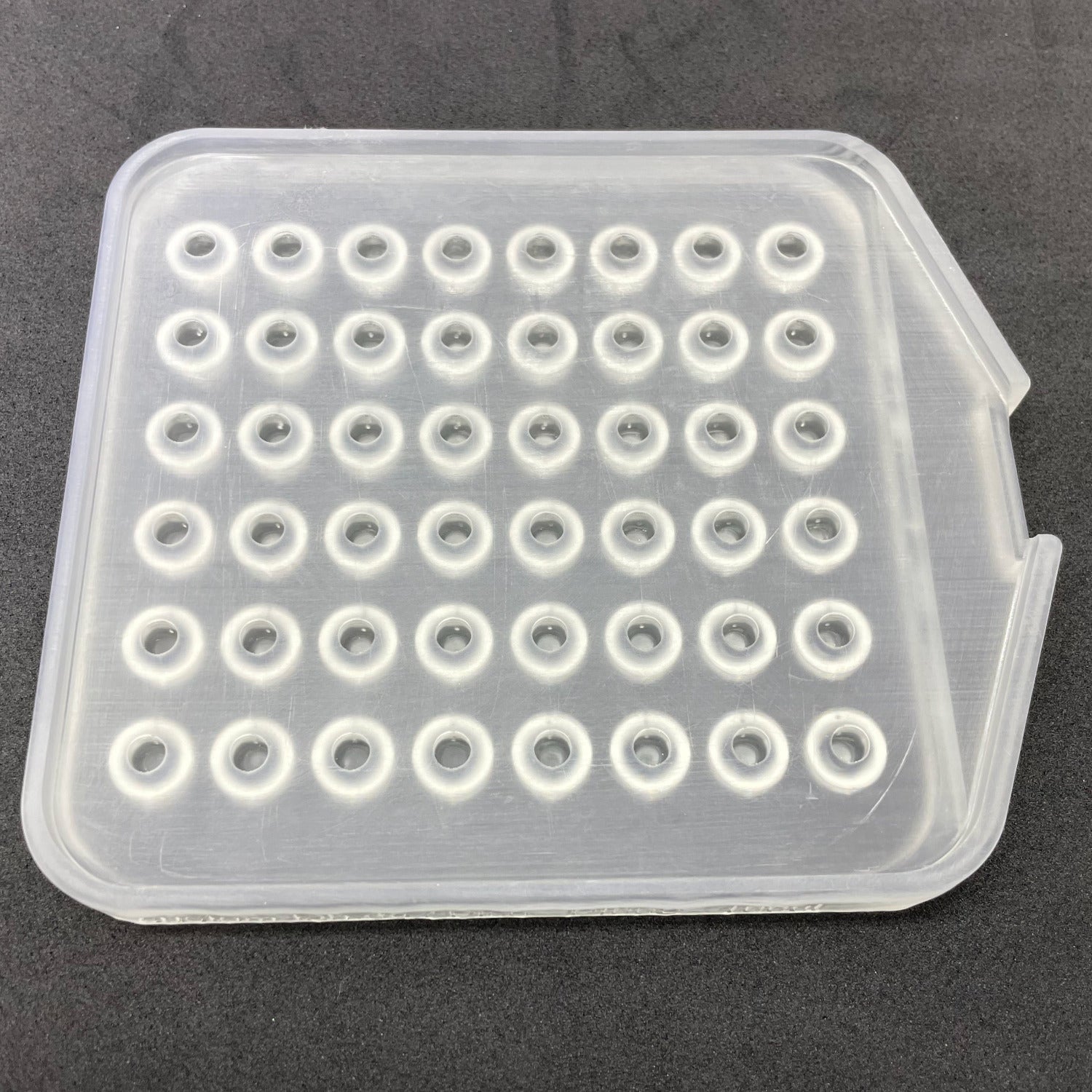

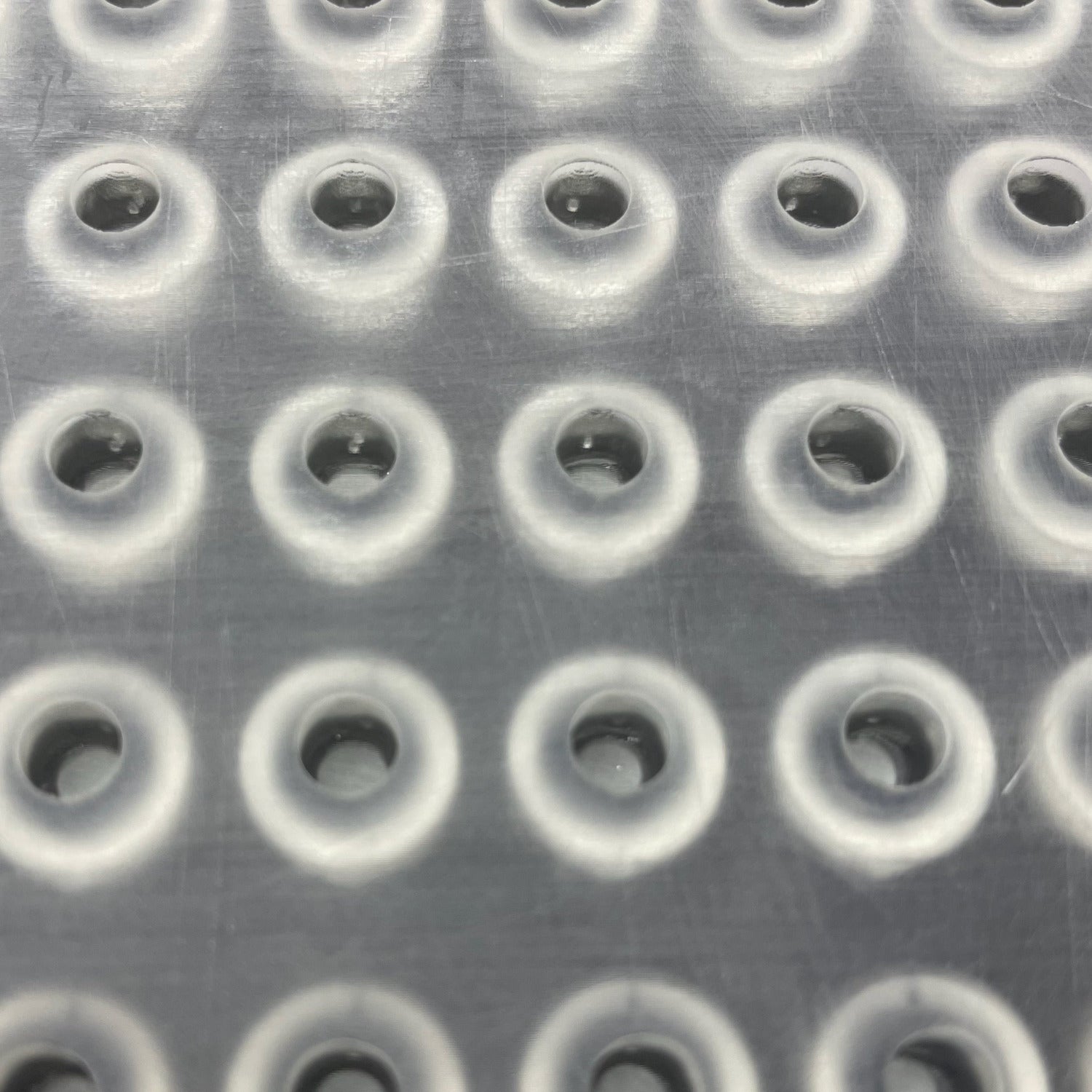

The cylindrical cavity of the measurement unit can be customized to a user-specified volume by adjusting the diameter and height. Please either mention the volume (in mm³ or µl) or the diameter and height of the cavity.

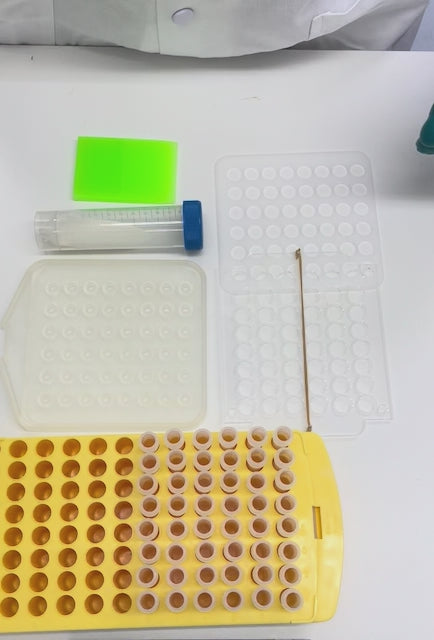

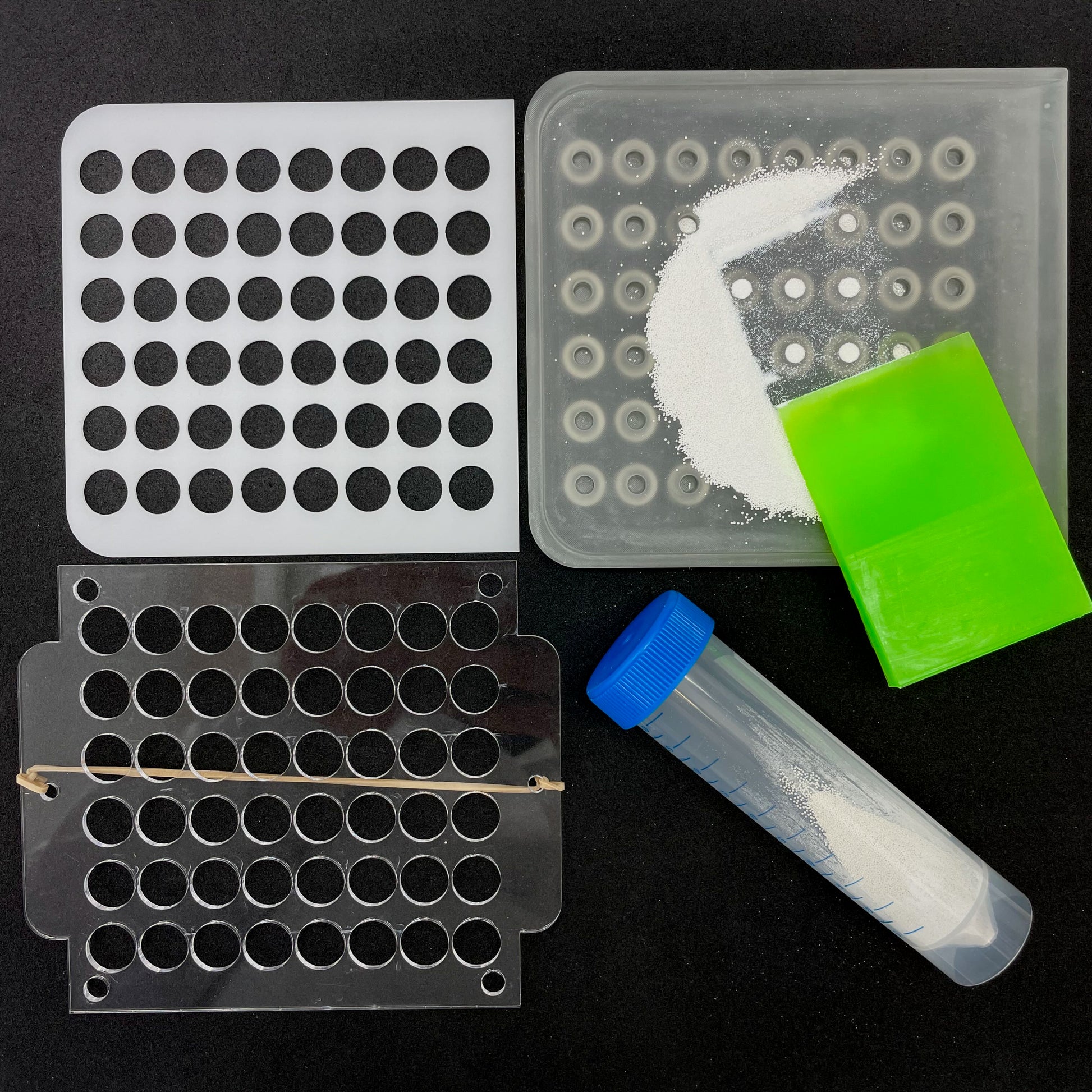

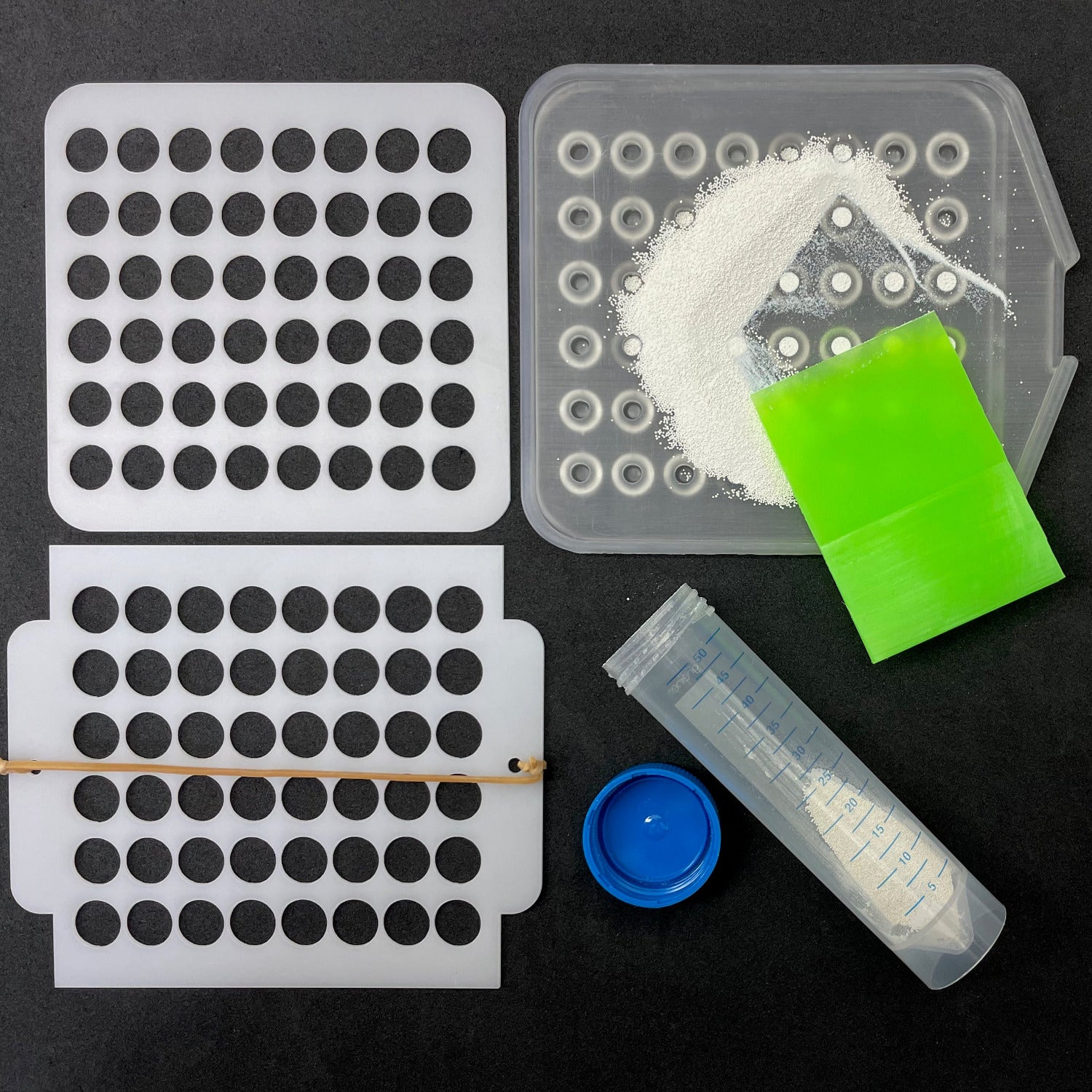

Included in the 48 Well Powder Dispenser Package:

• 1 measurement unit
• 1 tube holder plate
• 1 tube alignment plate

How to Operate the Powder Dispenser for 48 2 ml Screw Cap Tubes (Fill-and-Flip Method, See Video):

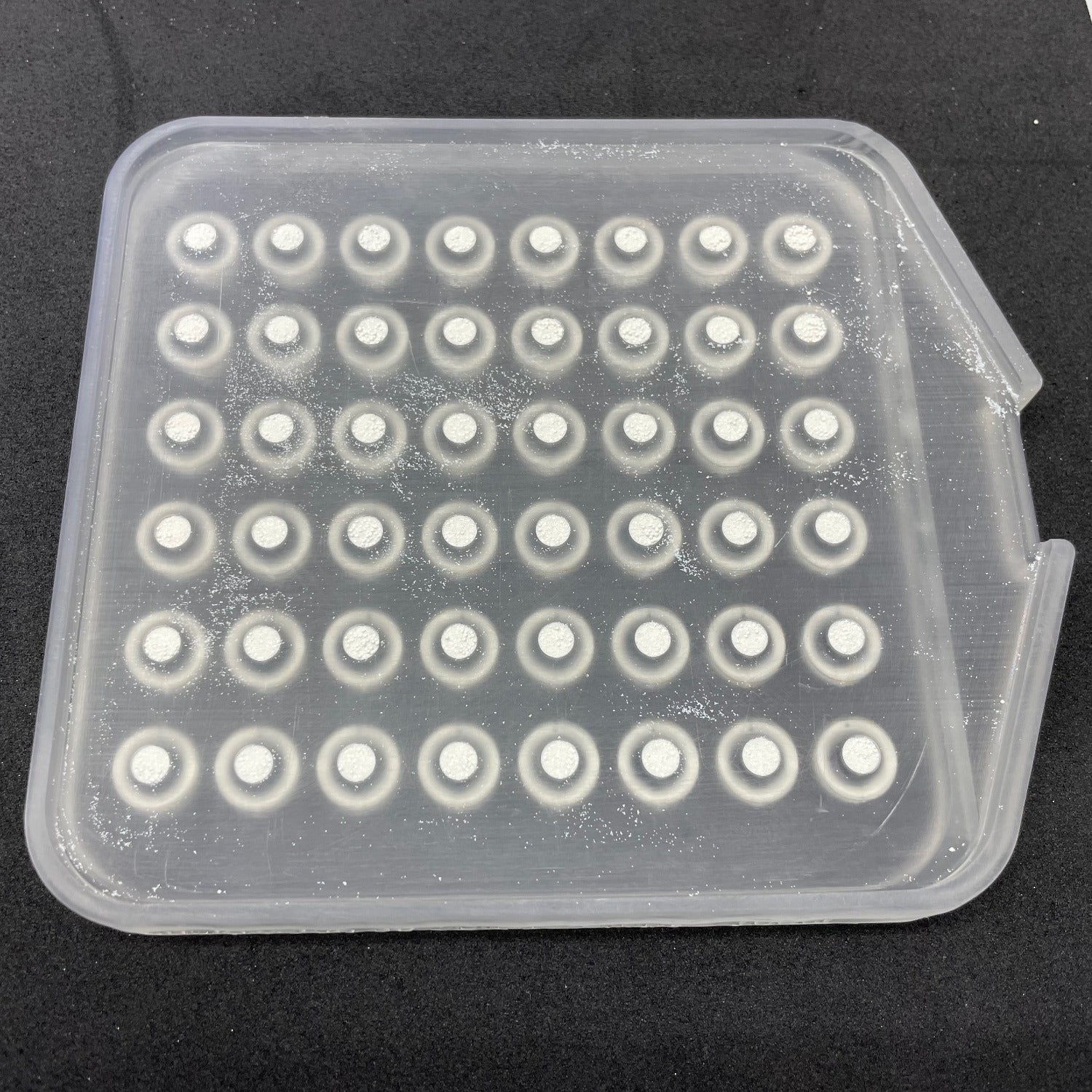

1. Fill the dispenser measurement unit with powder, ensuring all holes are filled.

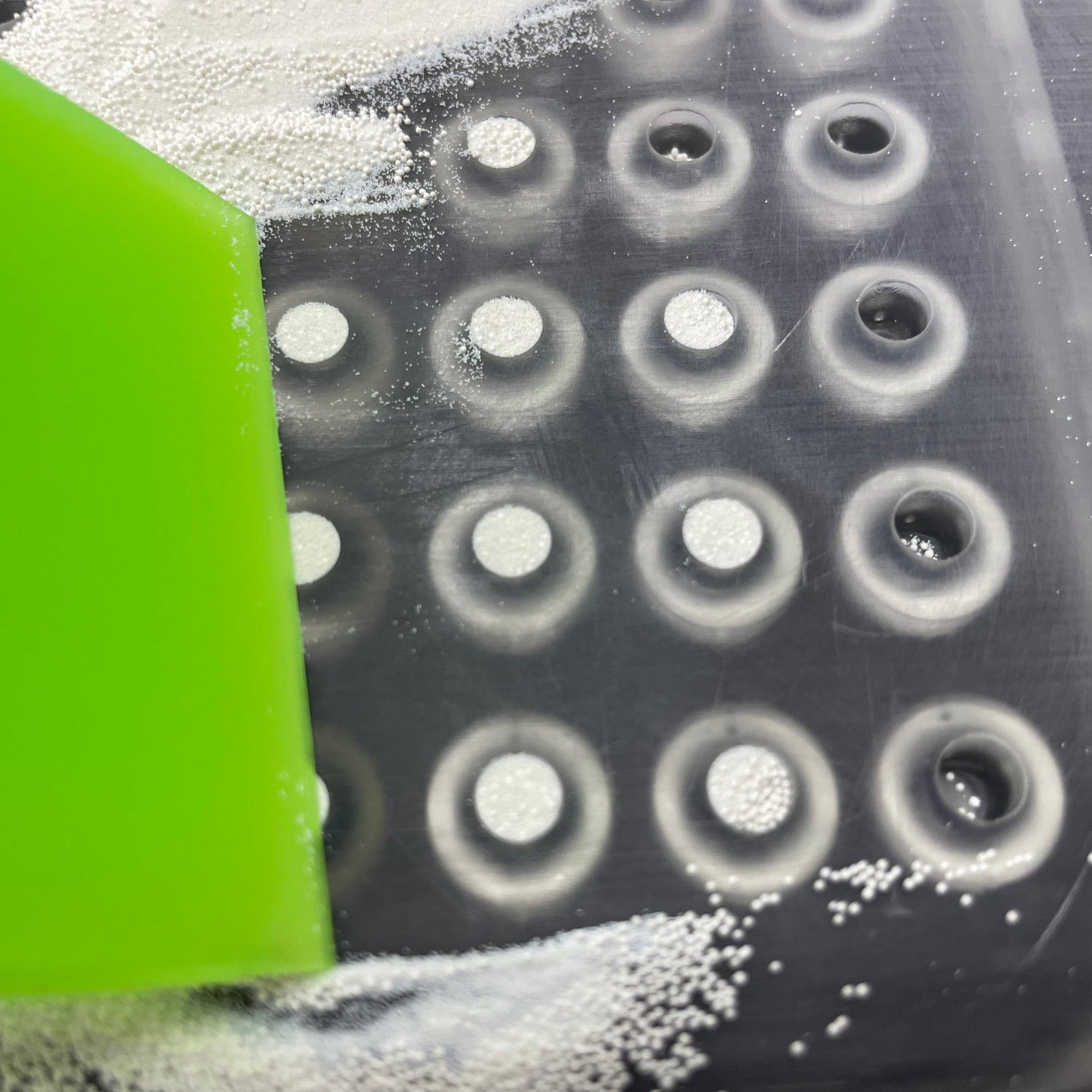

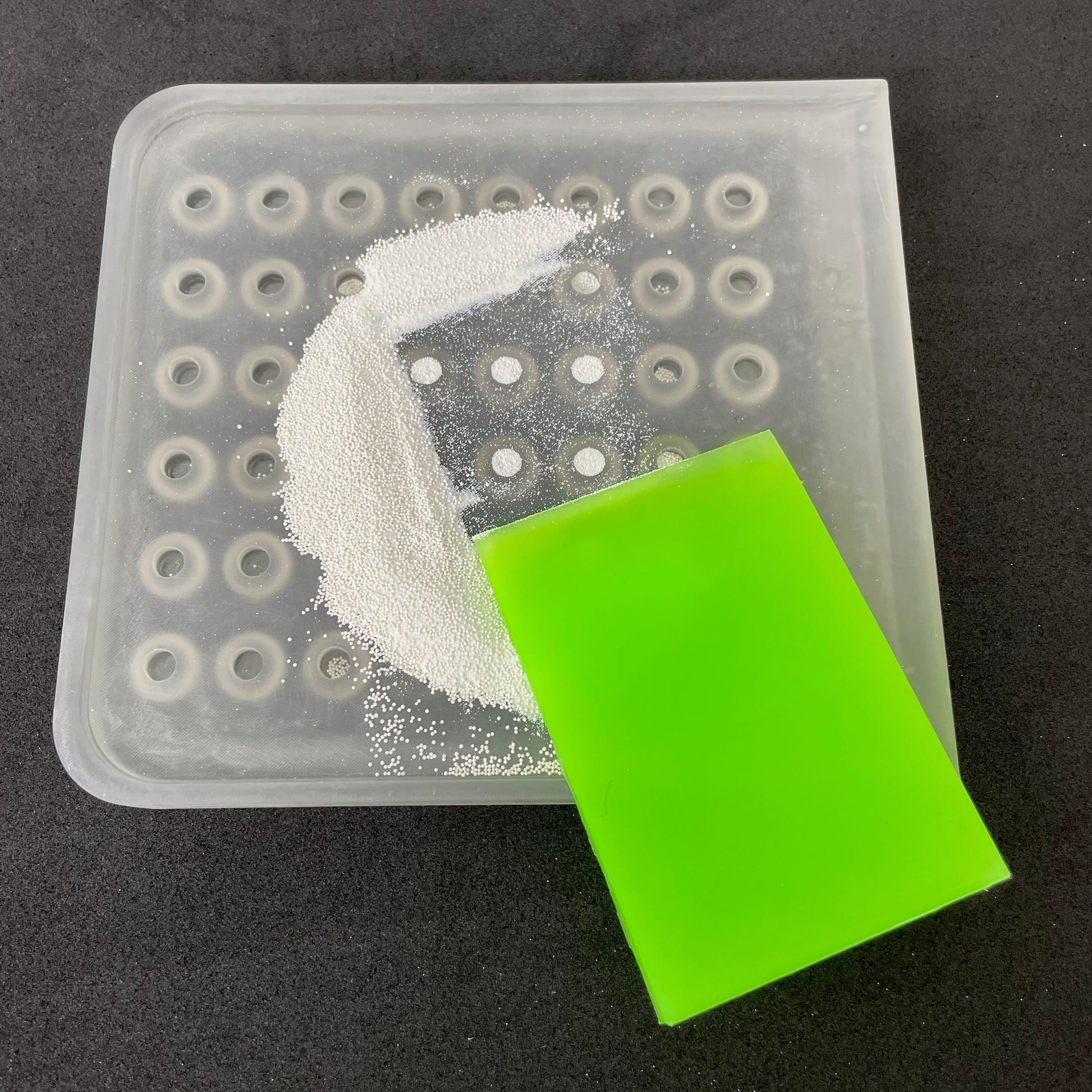

2. Remove excess powder with a scraper.
3. Place the tube alignment plate on top of the measurement unit.
4. Secure the tubes in a rack using the tube holder plate.
5. Invert the tube rack and align it with the measurement unit (guided by the alignment plate).
6. Hold firmly and flip quickly to dispense the powder into the tubes.
7. Disassemble, clean, and reuse the system as needed.

Tip: If you want to fill less than 48 tubes simply cover (with adhesive tape) the wells of the measurement unit that should not be filled with powder.

Technical Note:

• Compatible only with this standard tube rack! Not included but available separately here.

• The Pico laboratory powder dispenser is 3D printed with SLA technology with very high accuracy and surface quality. Semi-clear and durable material.

• The holder and alignment plates are made of acrylic glass (PMMA) or POM by laser-cutting.

• If surface sterilization is needed, please use short UV exposure or bleach.

You need help with the customization? Email us!
