Custom gel combs for gel electrophoresis

Custom gel combs for gel electrophoresis

€41,65incl. 19 % VAT, plus shipping
€35,00 net, excl. VAT
Your legal guarantee rights
LEGAL GUARANTEE Minimum two-year legal guarantee protection for goods sold in the European Union. Consumers can claim their rights under the legal guarantee of conformity, for example if goods: do not match the description; do not function as intended. Sellers are liable for any lack of conformity which existed when the goods were delivered, and which becomes apparent within the legal guarantee period. Sellers in such a situation are required to offer: free repair or free replacement; in some cases, a price reduction or full reimbursement. Some countries have a longer legal guarantee period. For second-hand goods, a shorter period may apply, but not less than one year. For more information on your rights in a specific country, scan the QR code below or ask the seller. europa.eu/youreurope/guarantees What to do if you receive non-conforming goods: 1 Contact the seller as soon as possible to report the issue; 2 Provide proof of purchase, such as a receipt, invoice, or bank statement. Sellers and producers may also offer commercial guarantees, which apply independently from the legal guarantee. For example, you may see this GARAN label representing a commercial guarantee of durability offered by the producer at no additional cost and covering the entire good.

Open the legal guarantee notice on Your Europe

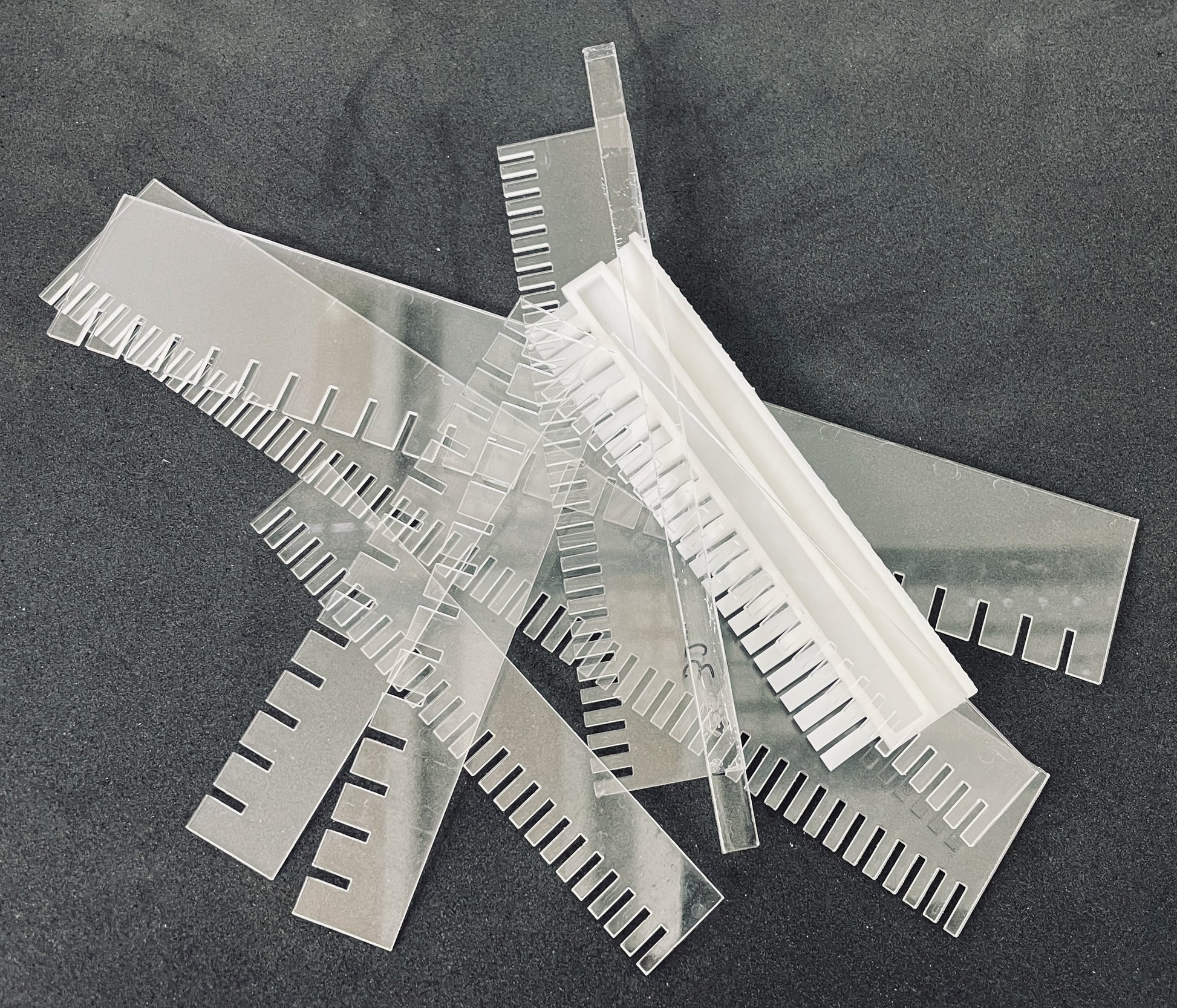

Fully customizable gel combs for gel electrophoresis. E.g. as replicas of your existing gel combs, as spare parts, or with your own specifications to fit your needs and gel chambers.

Any dimensions can be customized, such as the well (pocket) height and width, distance of wells to each other, number of wells per comb, etc. Please use the configurator (see below) and paste the specifications in the text box.

Can be designed and manufactured for any gel system such as Thermo Scientific Owl EasyCast, BioRad Mini Protean, Roth ROTIPHORESE, Nippon Mupid, and so on.

Maximum width of comb: 390 mm

One-time setup fee per comb design: €40
Every new comb design requires a one-time setup fee of €40, which covers creating and testing the cutting file for your customized comb. The fee is charged once per design, no matter how many combs of that design you order. Please add the Setup Fee for Custom Gel Combs to your cart together with your order, once for each different comb design. Reorders of a design we have already made for you do not require a new setup fee.

How to order:

  1. Design your comb(s) with the configurator (below) and copy the specification.
  2. Paste it into the “Enter specifications here” field.
  3. Add the comb(s) to the cart
  4. Add one setup fee per comb design to your cart.
  5. Check out.

Manufactured by laser cutting from clear acrylic glass or white POM (very durable and chemically resistant).

Contact us for more information!

View full details

Gel Comb Configurator

Enter the dimensions of your customized comb. The drawing updates as you type and is drawn to scale, front and side view on the same scale.

Enter your dimensions Start here

mm
Material thickness of the comb plate
mm
Width of one tooth
mm
Length of the teeth below the plate, sets the depth of the wells
Teeth are spaced evenly across the comb width
mm
Outer edge of the first to outer edge of the last tooth, max. 390 mm
mm
Measured in your gel tray, see How to measure your tray. Comb height D is calculated from it.
mm
1 to 10 mm in 1 mm steps
mm
Outer width of your gel tray, max. 390 mm, see How to measure your tray
Bar height10 mm
Teeth end above tray floor2 mm
Inner corner radius at the tooth roots0.5 mm

Every value you enter flows straight into the drawing on the right below.

How to measure your tray

  1. Find the notches in the tray walls where the comb bar rests.
  2. M: measure straight down from the bottom of the notch to the tray floor, for example with the depth rod of a caliper. The teeth will end 2 mm above the floor, so every well keeps a bottom.
  3. F: measure the outer width of the tray across the notches, from the outer edge of the left wall to the outer edge of the right wall. The bar is cut to this length.

Check the drawing

Your input Calculated or fixed
100% Pinch, or Ctrl and scroll on the drawing to zoom. Drag to move.

Front and side view share one scale. Use the 10 mm bar for reference.

Calculated values

Copy your specification

Copy this text and paste it into the field Enter specifications here when you order.
