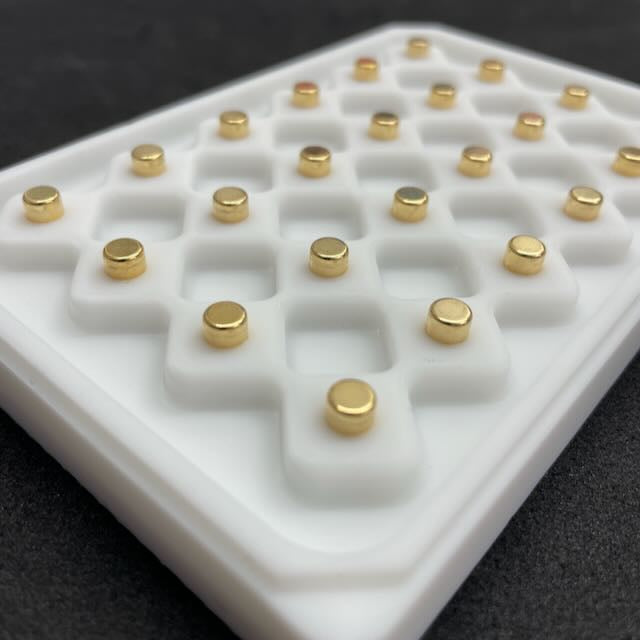

Dieter, the Magnetic Separation Rack for 96-Microwell and Deepwell Plates

The magnetic rack for 96 deepwell plates is compatible with microwell-plates and deepwell-plates with a flat, round, or conical bottom. It is also compatible with PCR plates (But Steve is still the specialist for 96-well PCR plates).

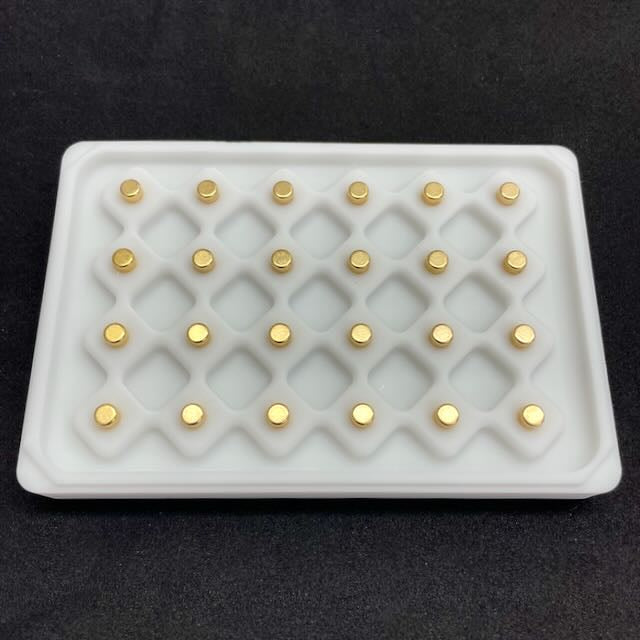

Use it with deepwell and microwell plates for bead cleanups, DNA extraction and many more applications. The deepwell magnetic rack is compatible with all kinds of beads, e.g. AMPure XP, DynaBeads, etc. The magnets are very strong - they can pull beads down from a filled well of a 2 ml deepwell-plate! As can be seen in the pictures, other types of magnets can also be installed, e.g. to pull beads to the side of the wells instead of pelleting them on the bottom wells.

Options for Customization of the Deepwell Magnetic Rack:

Offset of magnets for different plate types.

• Standard: 0mm offset (this is suitable for all plate types)

• In case you only use one type of plate with a certain deepwell bottom shape, either name "flat", "round", or "conical".
• Smaller magnets for a higher bead pellet are possible, too (see last pictures)
• Private labelling / OEM possible on request.

Technical Specification:

• Dimensions footprint: 127.8 mm x 85.5 mm (ANSI:SBS footprint compatible for pipetting robots)
• 24 very strong Neodymium magnets with Nickel coating. 24 x 5.9 kg (!).
• 3D printed with SLA technology with very high accuracy and surface quality.
• Comes in white, durable material.
• If surface sterilization is needed, please use bleach or UV sterilization.
